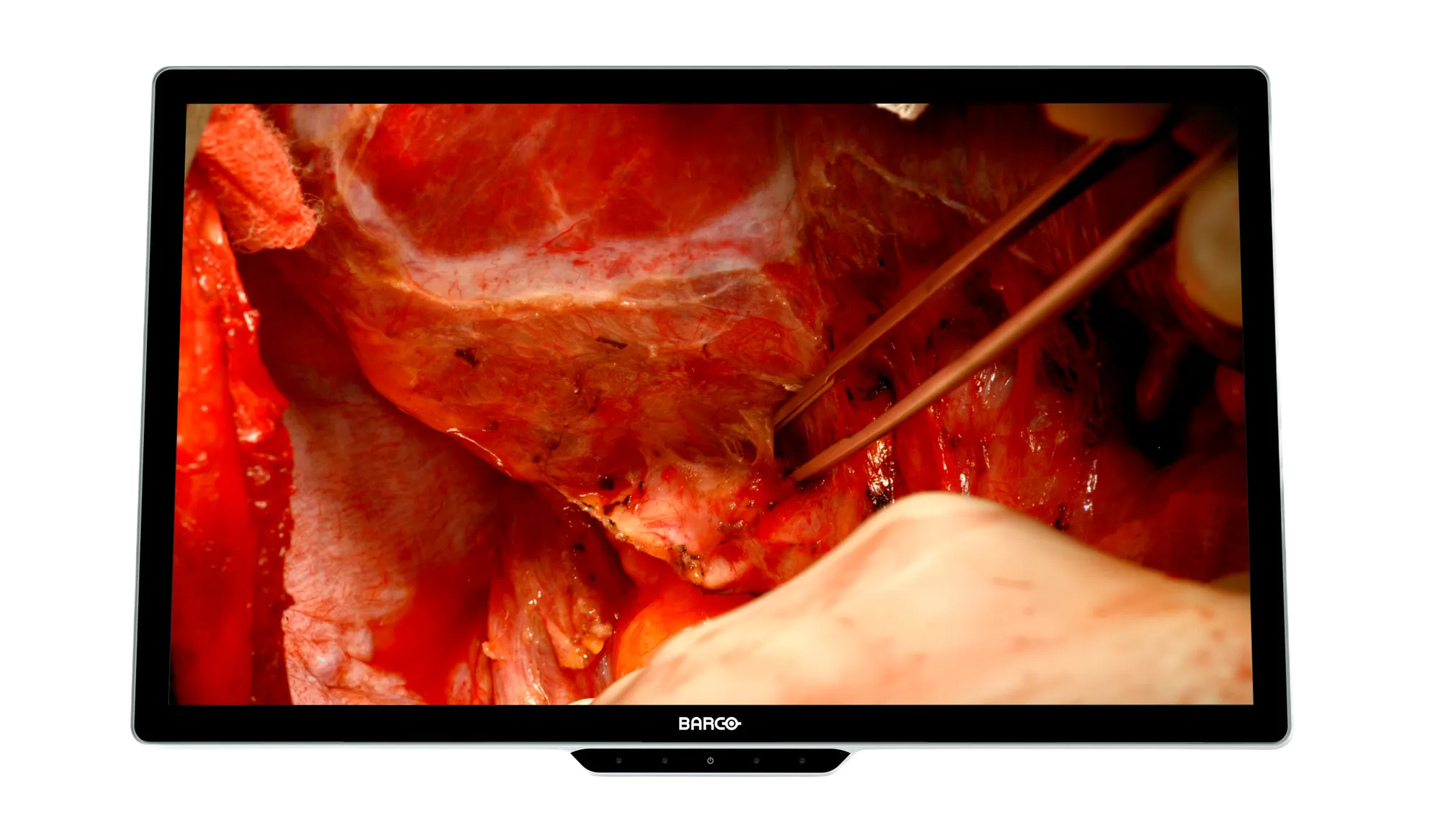

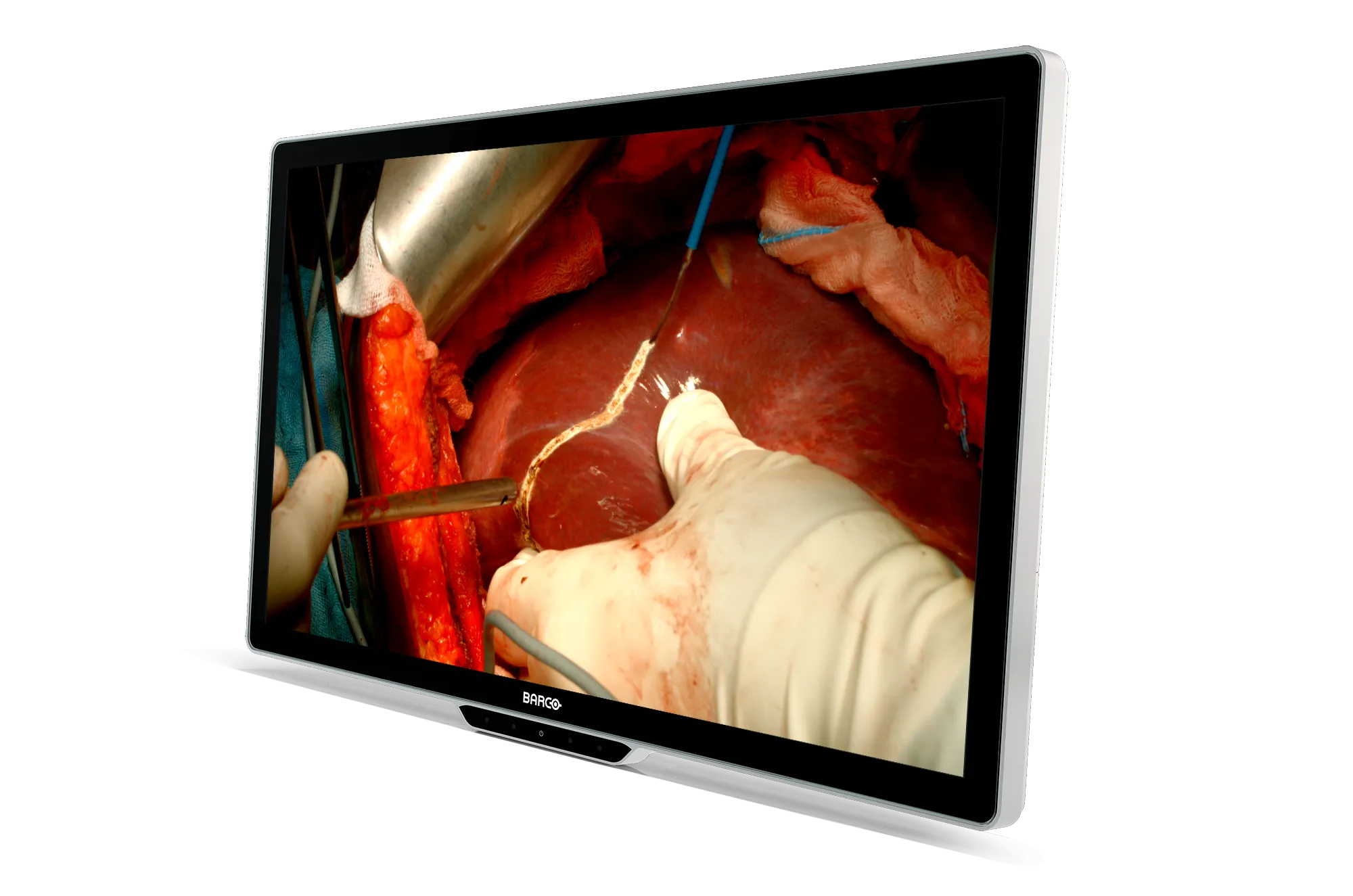

Barco MDSC‑8532

See more with surgical 4K precision, with Barco’s 32”, HDR-HLG, A-ecolabel endoscopic and surgical display. This 4K UHD display offers exceptional brightness, crisp contrast, and vivid colour video images, important where morphology is inconspicuous or recessed.

Uncompromising image quality

  • See more subtle differences with the MDSC-8532’s 4K resolution. Its HDR-HLG technology delivers high clarity and detail, ensuring precise visualization for every procedure, while enhancing depth perception thanks to the superior contrast and brightness. The wide colour gamut and Barco’s industry-leading calibration provide a full range of true-to-life colours. And ultra-low latency ensures real-time feedback for perfect hand-eye coordination.

Fast and efficient

  • The MDSC-8532 is low in weight and slim in design. Its dual user interface – there is one at the front and one at the back – accommodates individual user preferences. The display is fast to power-up, low in energy consumption, and features an automatic failover. Easily set up and change the display's layout configurations to fit your procedure. And increase efficiency with customizable shortcut buttons.

User-centric design

  • The slim lightweight modern design features an optimized full-front glass design with bezel protection on all sides safeguards against damage by surgical lights and IV poles. It also protects the display from surgical fluids and contaminants. The fanless design (SSTF M2 version) and intelligent cable cover support infection control, disinfection, and cleaning. The MDSC-8532 is approved for use in the vicinity of patients and includes an automated failover method. It is fast to power-up and features an automatic failover. A dual interface design (front and back) accommodates individuals user preference while customizable shortcuts enable faster user interactions. The MDSC-8532 comes with a 3-year warranty and the possibility to extend this to 5, with Barco's EssentialCare package.
  • Optimized for endoscopy and surgical imaging
  • Bright and crisp color video images
  • Billions of true-to-life colors
  • Accurate color-calibration
  • HDR-HLG for superior contrast and color accuracy
  • Fast power on and automatic failover
  • ‘A’ ecolabel for a sustainable choice
  • Screen technology – TFT AM LCD / LED backlight
  • Active screen size (diagonal) – 32” (813 mm)
  • Active screen size (H x V) – 708 x 399 mm
  • Aspect ratio – 16:9
  • Resolution – 3840 x 2160 pixels
  • Pixel pitch – 0.1845 mm
  • Colour support – 1 billion (10 bit colour depth)
  • Colour gamut – Native: 94% NTSC
  • Colour calibration – ITU-709, DCI-P3, BT.2020 (BT.2020 reproducible colours are within the limit of the LCD panel)
  • Viewing angle – 178° Hor / 178° Ver
  • Luminance – Native: 850 cd/m² (typical) Default setting: 550 cd/ m² stabilized @6500K & Native colour space
  • Contrast ratio – 1350:1 (Typical)
  • Response time – Ton + Toff = 18 msec (typical)
  • White point – Calibrated: 5600K, 6500K, 7600K, 9300K
  • Gamma curve – Native, 1.8, 2.0, 2.2, 2.4, Video1, Video2, DICOM (review level), HDR-HLG
  • Features – User-programmable function keys, Picture-in-Picture, Picture-by-Picture, Image Mirror and Rotation, Zoom, Pan, Failover mode, User profiles, High quality upscaling from SD / FHD input to UHD, FW upload from memory stick
